GALGO pants tube

GALGO pants tubes (synthetic or natural rubber), are used in the textile industry to wash in any type of denim clothing.

Types:

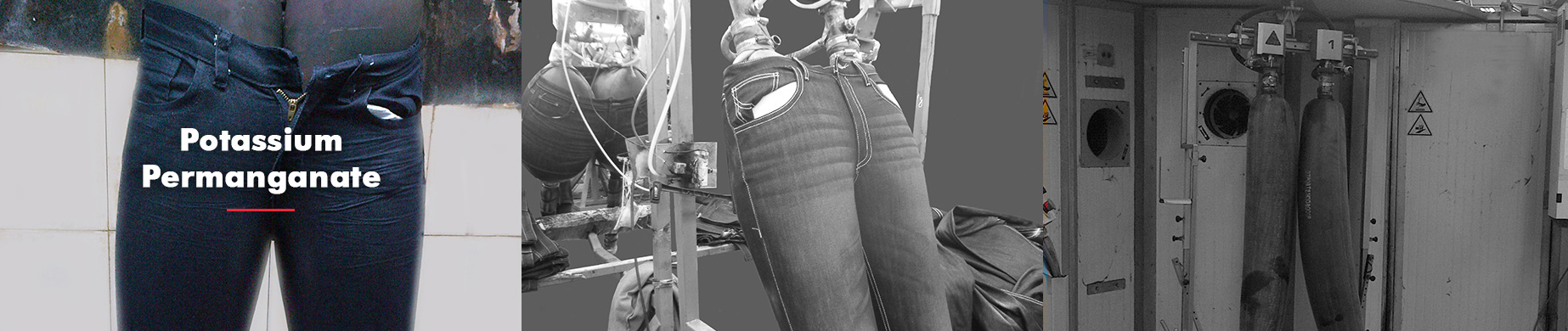

Potassium Permanganate

The tube is resistant to the Permanganate solution.

Due to the thickness as well as the rubber compound used, it is suitable for any type of short garment, for example, denim shorts.

Process Size recommendation
(Mexico, Central and South America)		 Recommended tube
 Length
(mm) +20		 Double wall thickness
(+0.5mm)		 Pieces per bag
 Inflated maximum perimeter (pulg:) Minimum length in use (mm.) Maximum length to stretch (mm.)
POTASSIUM PAINT WISKERS ´4 – 12 DTP-04 1500 5.70 40 14 1420 1500
14-20 DTP-06 1500 5.70 40 21 1420 1500
22-30 DTP-07 1500 5.70 30 24 1420 1500
32-36 DTP-08 1500 5.70 30 28 1420 1500
32-36 DTP-08-43 1100 5.70 30 28 1020 1100
32-36 DTP-08-43N 1100 5.70 30 28 1020 1100
32-36 DTP-08-45 1150 5.70 30 28 1020 1100
32-36 DTP-08-49 1250 5.70 30 28 1020 1100
32-36 DTP-08-49N 1250 5.70 30 28 1020 1100
38-42 DTP-09 1500 5.70 30 32 1420 1500
44-48 DTP-10 1500 5.70 20 35 1420 1500
≤ 50 DTP-12 1500 5.70 20 38 1420 1500
**** DTP-20-118 3000 5.70 4 70 N/A N/A

Types:

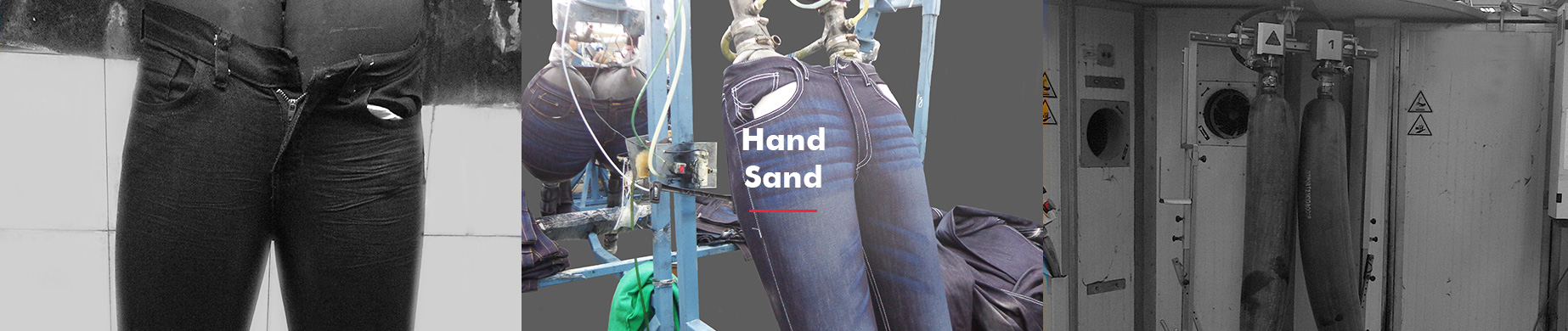

Hand Sand

Recommended to be used with sandpaper and pastes for washing denim fabrics. Due to its combination of width, length, and double thickness, it no longer requires cuts when assembled.

Process Size recommendation
(Mexico, Central and South America)		 Recommended tube Length
(mm) +20		 Double wall thickness
(+0.5mm)		 Pieces per bag Inflated maximum perimeter (pulg:) Minimum length in use (mm.) Maximum length to stretch (mm.)
HAND SAND ´4 – 12 DTPHS-04-36 915 7.00 40 21 890 1420
 22 – 30 DTPHS-07-26 915 7.00 30 26 890 1420
 32 – 42 DTPHS-09-36 915 7.00 30 34 890 1420
≤ 44 DTPHS-12-36 915 7.00 20 40 890 1420
 32 – 42 DTPHS-23-150-04 1500 8.56 20 36 750 1420

Types:

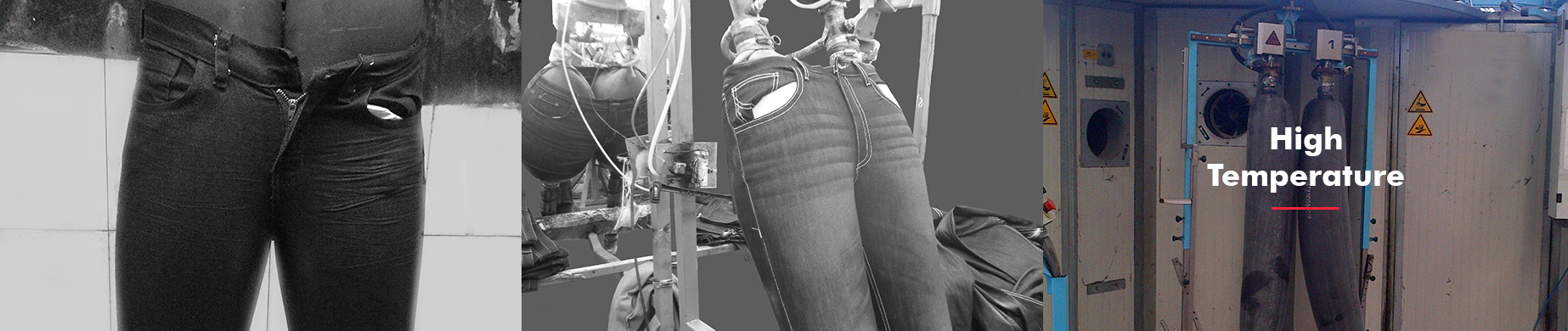

High temperature

Ideal for use in ultraviolet laser machines, resists high temperatures due to its thickness, it also dissipates the heat to which the garment is exposed. Its flexibility helps to form the folds that are required in the designs.

Process Size recommendation
(Mexico, Central and South America)		 Recommended tube Length
(mm) +20		 Double wall thickness
(+0.5mm)		 Pieces per bag Inflated maximum perimeter (pulg:) Minimum length in use (mm.) Maximum length to stretch (mm.)
HIGH TEMP. 32-36 DTP-08-3AT 1300 (min.) 3.00 45 24 1220 1300
